Passenger Elevator - PX Series
Px passenger elevator has the speed of 60 - 90 m / min, load range of 320kg - 1000kg, that is suitable for projects up to 10 floors such as hotels, offices for rent, schools or private houses.
Manufactured according to TCVN 6396-20: 2017; TCVN 6396-50: 2017; QCVN 02:2019/BLĐTBXH which meets the hot and humid climate of Vietnam, the average installation and working temperature is up to 40 °C, the average daily humidity is up to 95%. Passed the test of safety devices related to over speeding brakes, such as controls, braking devices and safety brakes at TNE factory test tower at Viet Hoa Industrial Park - Duc Hoa 3, Long An. All products of this PX series are labeled with Conformity in accordance with the process that meets the current national standards, QCVN 02:2019/BLĐTBXH.
The interior and exterior of the Px series is designed as a collection with pre-selected options, suitable for the diverse designs of the buildings, so that the cost savings of up to 10% compared to other models of the same specifications, and especially the fastest delivery time, meeting the express progress of the project (30 - 45 days).
Operation system:
- Full Selective Collective operation: during operation, lift serves calls from the landings in moving direction, service calls from the landings in opposite direction afterwards. When lift arrive at landing, illumination of corresponding button will be off
- Attendant operation: lift can be changed from normal operation mode to attendant operation mode by an “Priority Switch” located on Car Operating Panel (COP). During this operation, lift only serves calls from car inside
Car door safety device
This device makes doors open automatically while closing to aim preventing passengers or other objects knocked against doors.
Automatic door open/ close time adjustment
Door open/close times are automatically adjusted depending on numbers of hall or car calls in order to increase operating efficiency.
Over load
When car load exceeds rated load, indicator is on, a buzzer sounded and lift is prevented from starting
Arrival announcement
When the car is reaching the destination floor, indicator displays the landing floor, a buzzer sounded.
Car fan and light turn-off Automatically
For energy saving, car fan and light turn off automatically in case there is no hall call or car call
Automatic Rescue Device
In case of power failure, lift will be sent to the nearest floor by DC power of battery, door open for passenger getting off
Emergency light
In case of power failure, emergency light on car ceiling turned on automatically
Intercom system
In case of emergency, press the “Emergency button” located on car operating panel to communicate with responsible persons
Indicators
Matrix indication lights with red color (or mono/multi color LCD) to indicate car position, moving direction.
Bypass outside calls
If the hall buttons damaged, then this function can bypass the outside calls. (Error of the sticky buttons)
Energy saving
Thien Nam's passenger elevator MPx series use Thien Nam gearless motors (Gearless) with energy- saving permanent magnet synchronous motors, suitable for customers who prioritize energy saving. With a warranty period of up to 5 years.
Warranty stamp
Each TNE elevator at construction sites are all issued with an electronic warranty stamp. Through the electronic warranty stamp, customers can accurately specific informations of each site by scanning the QR code printed on the stamp via by network intelligent cellphone. Currently, each authentic product from TNE on the market are under electronic warranty.
Decorated module
The interior of the Px series is designed as a collection with pre-selected options, suitable for the diverse designs of the buildings, so that the cost savings of up to 10% compared to other models of the same specifica- tions, and especially the fastest delivery time, meeting the express progress of the project (30 - 45 days).

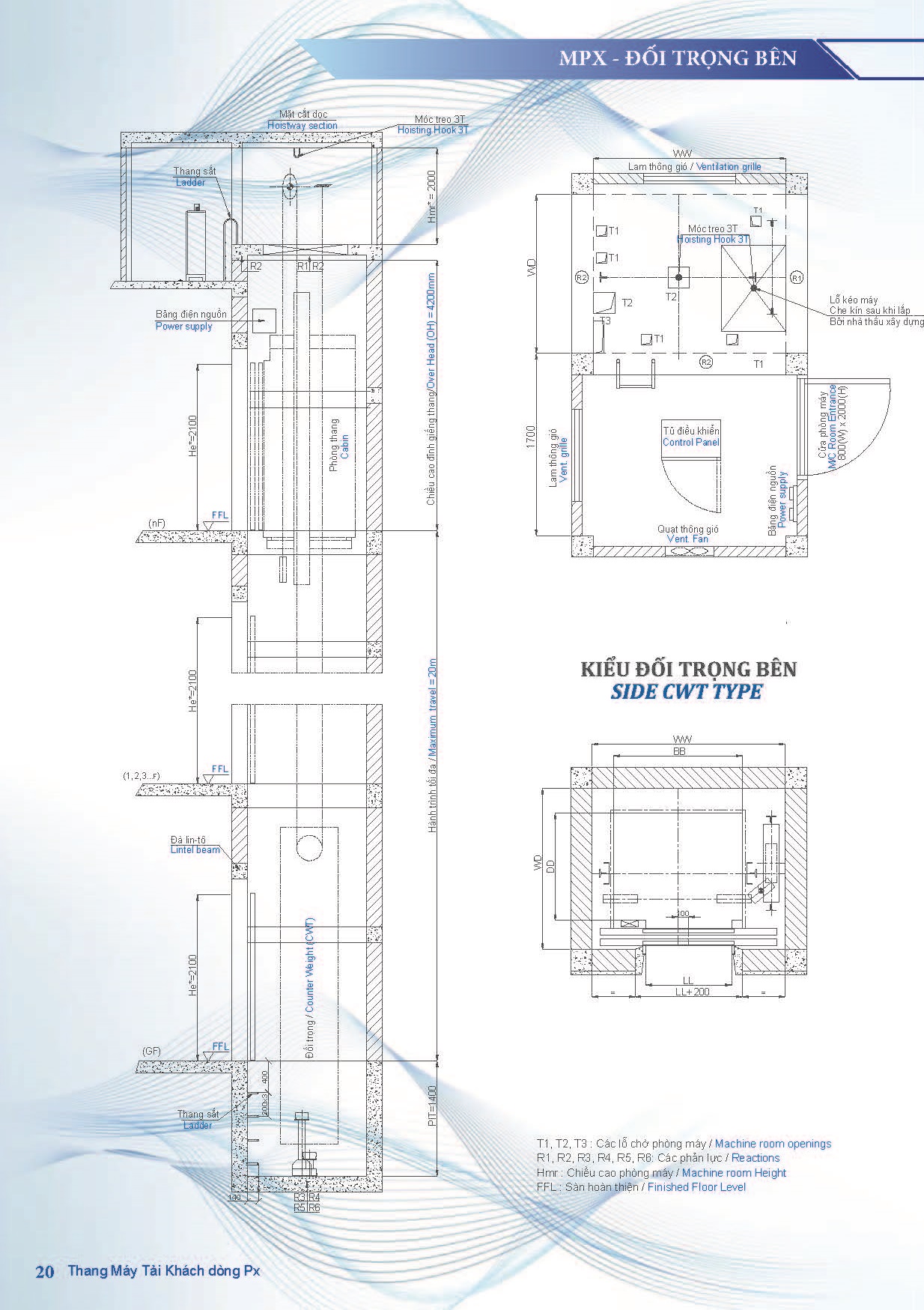

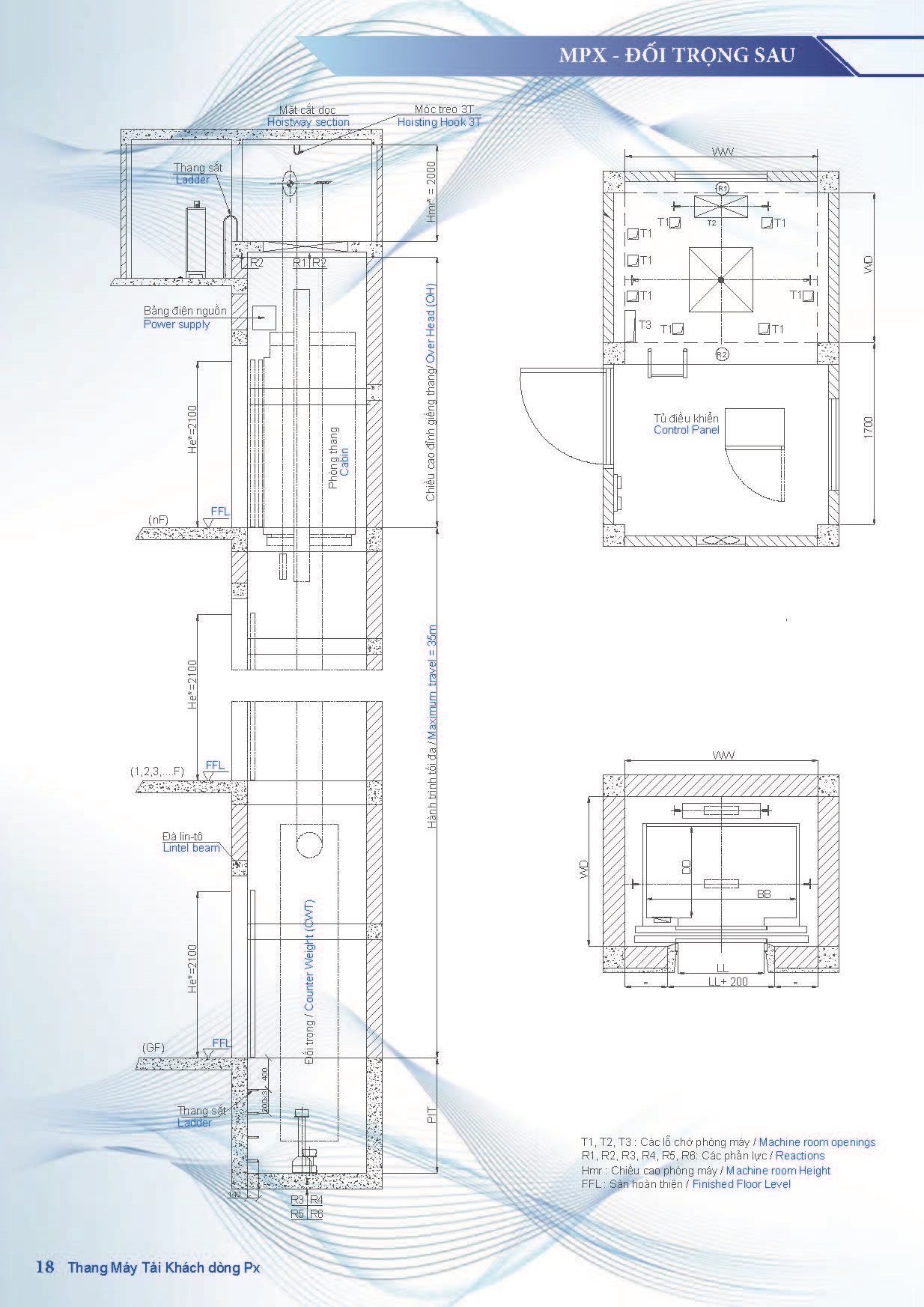

Machine room
• Construction of the machine room in accordance with shop drawing provided by Thien Nam. The walls and the ceiling shall be finished with waterproof plaster. Door equipped with a lock
• Cutting openings to lift the equipment and roping, wiring from machine room to hoistway. Provision hoisting hook
• Corridor, stairway, ladder to the machine room should be unobstructed. Stairs should be equipped with handrails and 700mm minimum in width
• Ventilation: installing ventilation grilles, ventilation fans. The temperature of the machine room shall be below 40°C. The relative humidity should not exceed 90% monthly average and 95% daily average
• Lighting: setting natural lighting windows, fluorecent lamp and switch
• The machine room power - 01 Power supply panel: The power should be three-phases (380V - 50Hz) four-line and grounding. Power supply voltage variation doesnot exceed ±5%

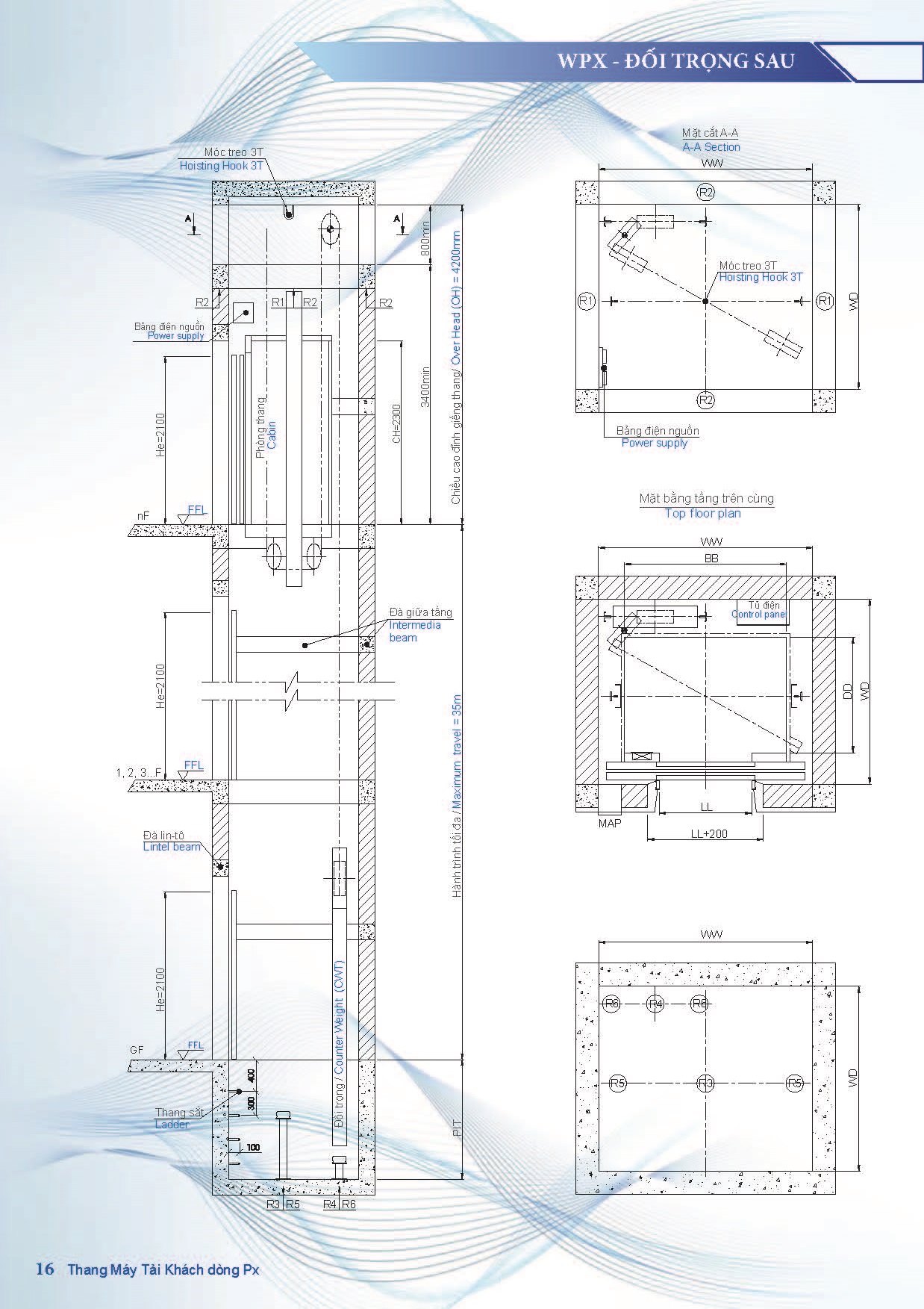

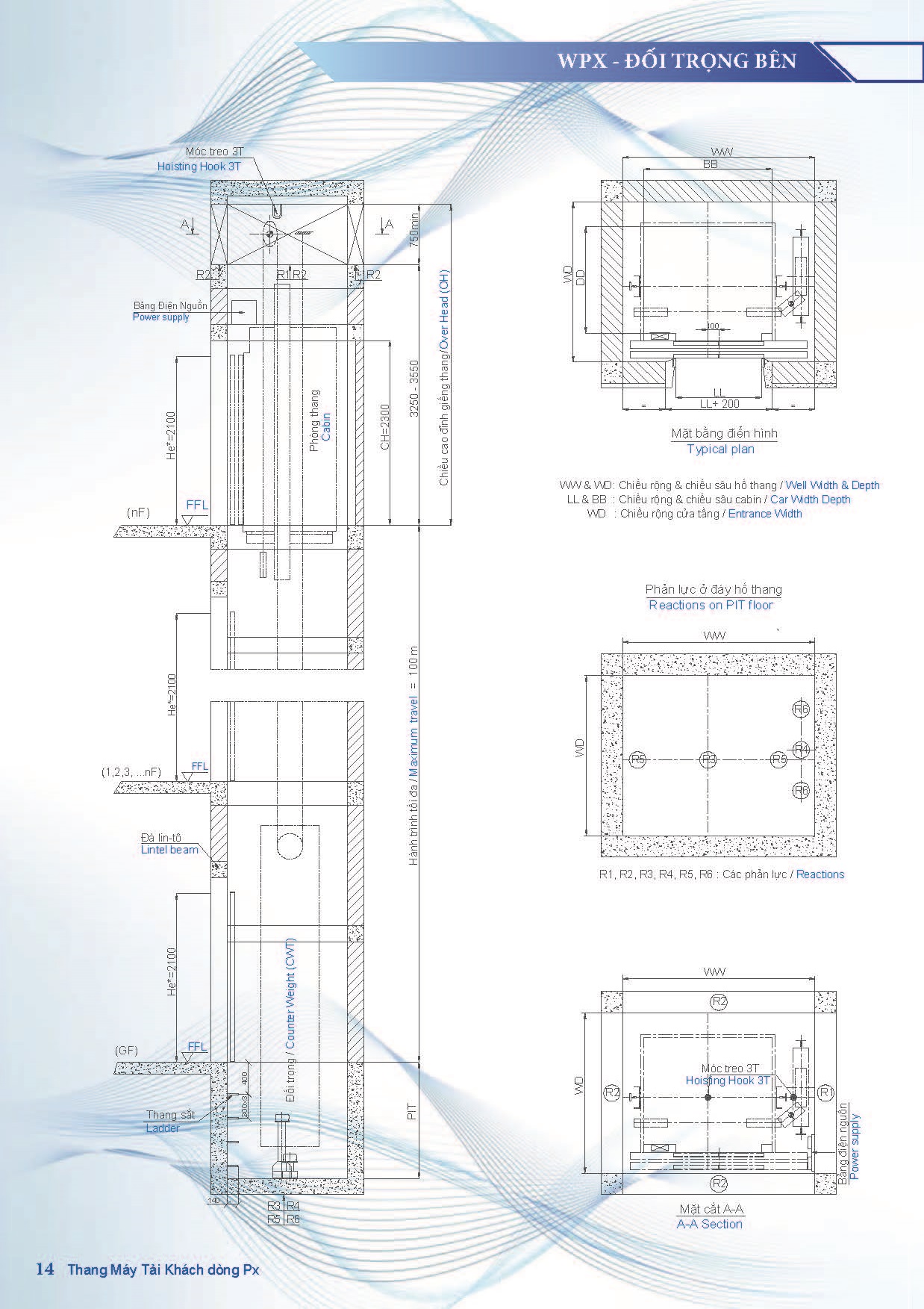

Hoistway & landing doors
• Contruction of an illuminated, ventilated, and waterproofed elevator hoistway, in accordance with shop drawing provided by Thien Nam. The tolerance of perpendicular line over the whole hoistway height must not exceed
• Provision a ladder to the elevator pit
• Cutting openings for installing landing doors, hall buttons and indicators. Finish after installation
• Provision seperated beams if two or more connected elevators in one hoistway & safety seperated fence between the pits
• Water pipes, electrical wires...etc, must not be assembled inside hoistway
• Provision intermediate beams if floor height is over 2.600mm.
Special remarks
• Provision all electric power for lighting, tools, welding...etc during installation and test operation
• Provision a secured area for storage of elevator equipment and material during installation
